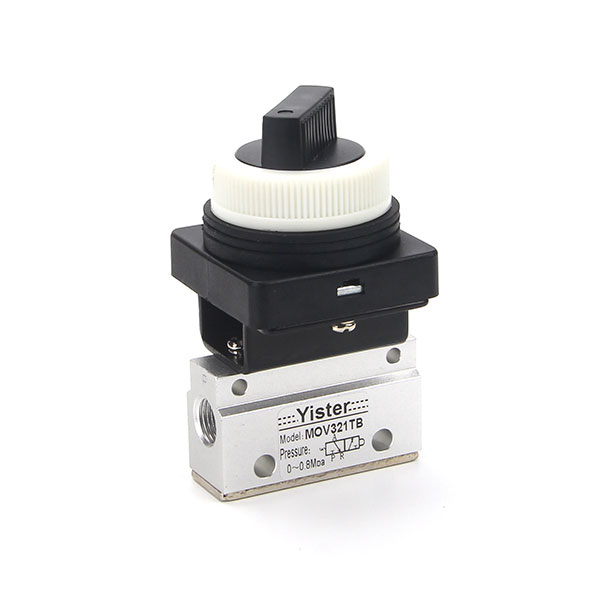

MOV321 Series Mechanical Valves
MOV321 series Machinery Valve 3 Way 2 Postion Pneumatic mechanical operated valve

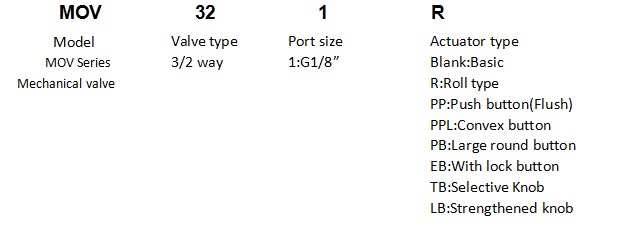

Order code

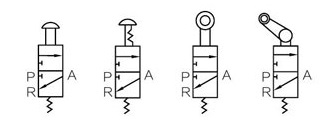

Symbol
Technical parameter
Item No.
MOV321

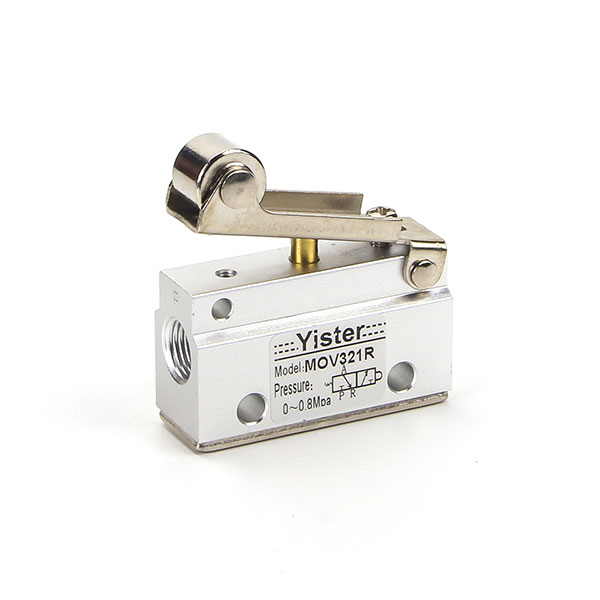

MOV321R

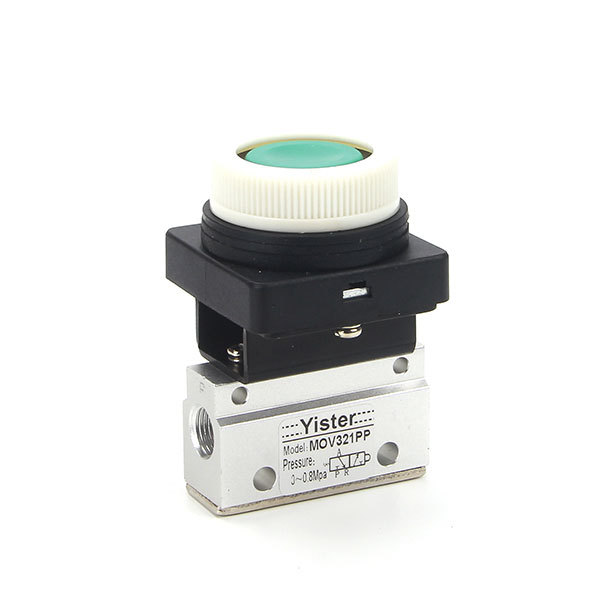

MOV321PP

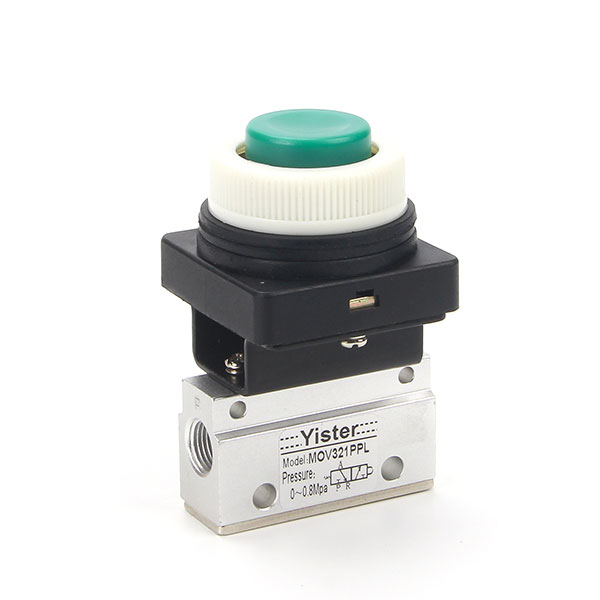

MOV321PPL

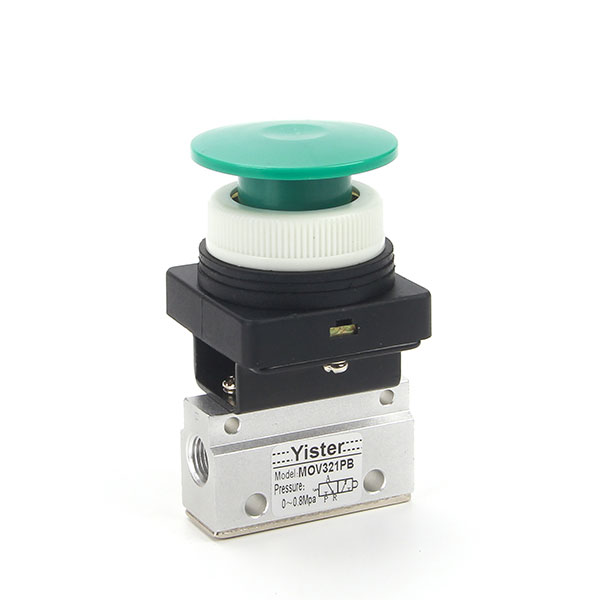

MOV321PB

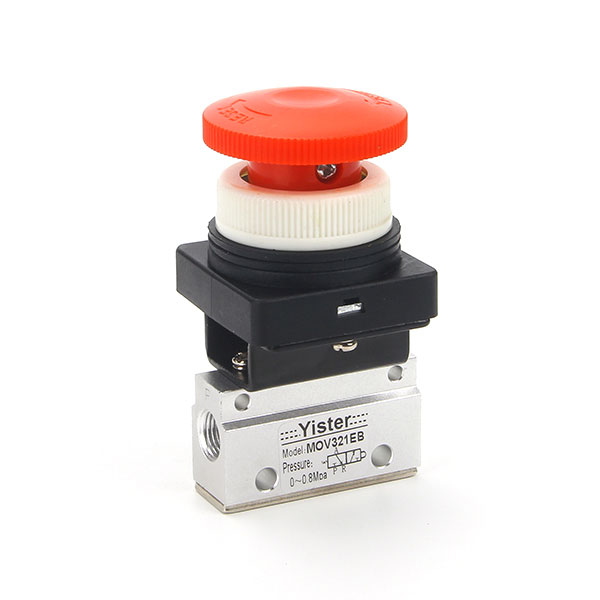

MOV321EB

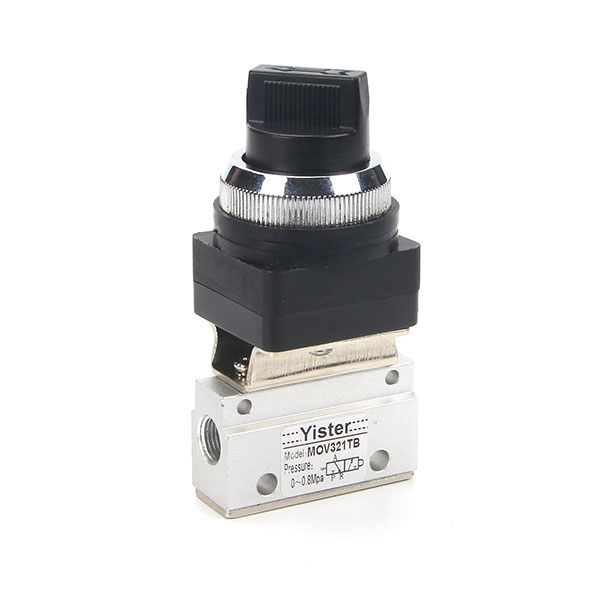

MOV321TB
MOV321LB
Fluid
Air
Operating press range
0-0.8 Mpa
Ambient and fluid temperature
-5 to 60℃
Port size
1/4”
Operation type
Direct acting
Lubrication
Not required

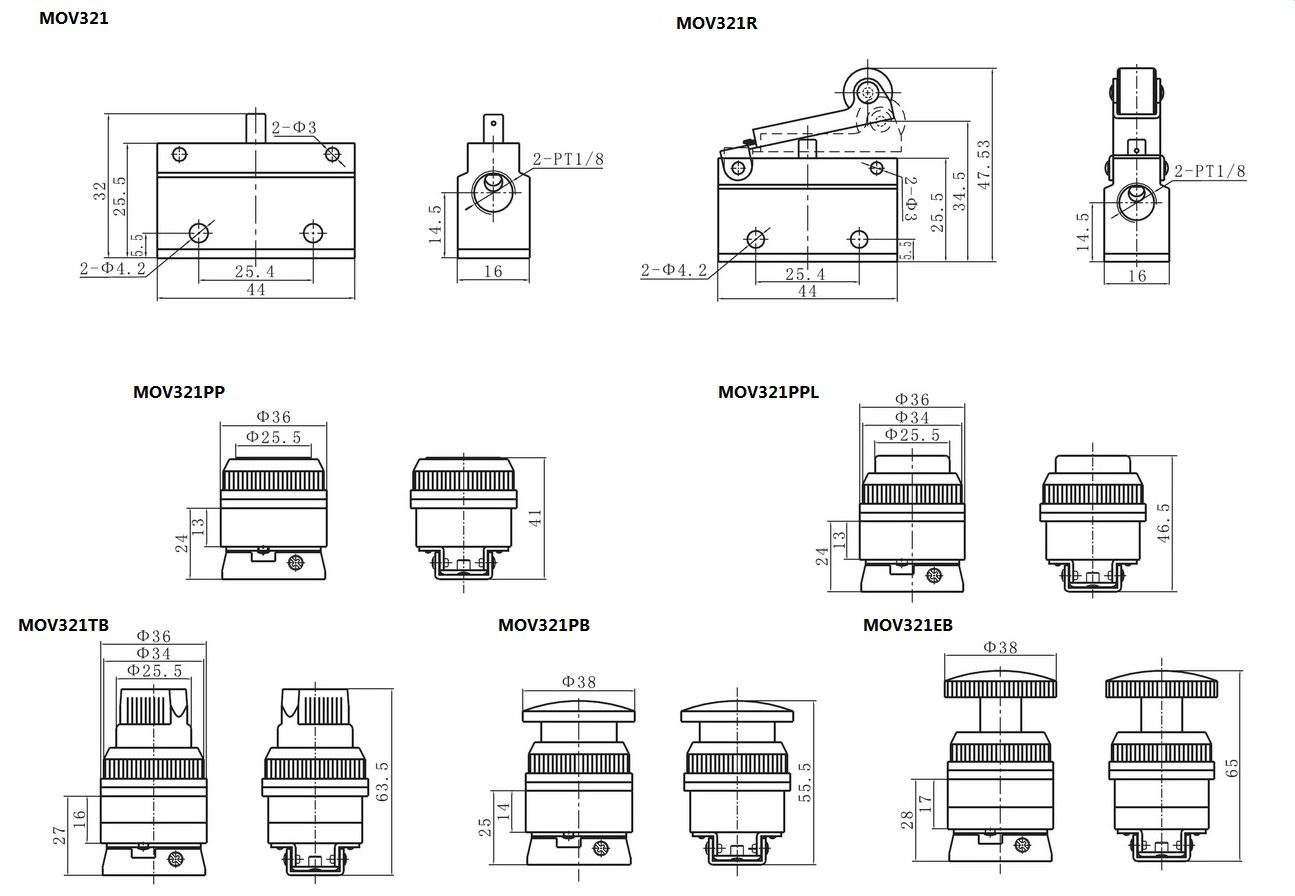

Dimension
Feature
MOV-02 MOV-321 PT 1/8"Female Thread 3 Position 2 Way Pneumatic Mechanical Valve MOV321PPL MOV321PB MOV321EP MOV321TB,Valve body is machined by automatic CNC to make sure all the dimensions accurate.
