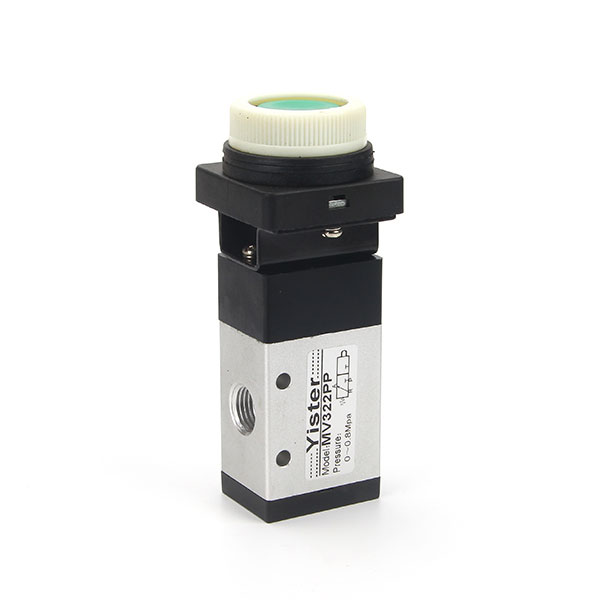

MV322 Series Mechanical Valves
MV322 Series Mushroom head reset pneumatic mechanical valve MV322PB MV322EB

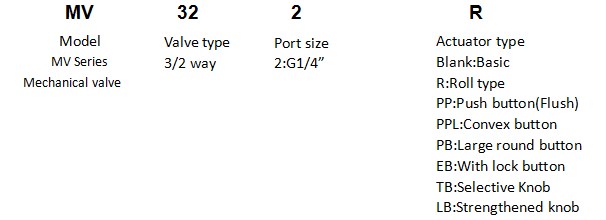

Order code

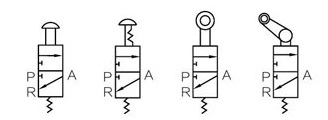

Symbol
Technical parameter
Item No.
MV322

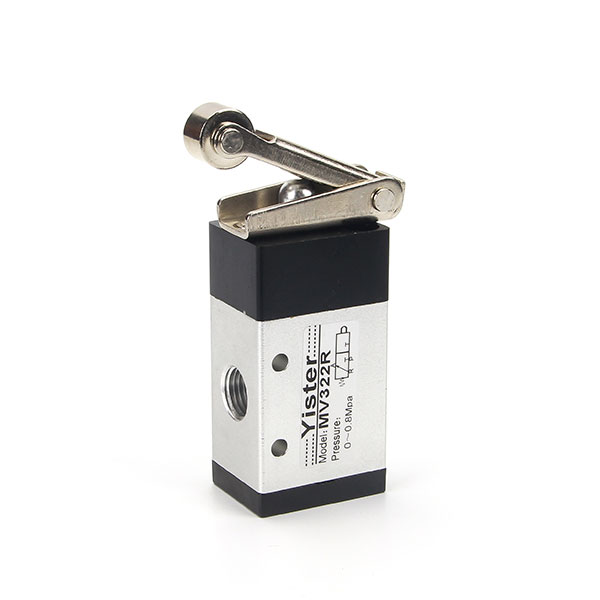

MV322R
MV322PP

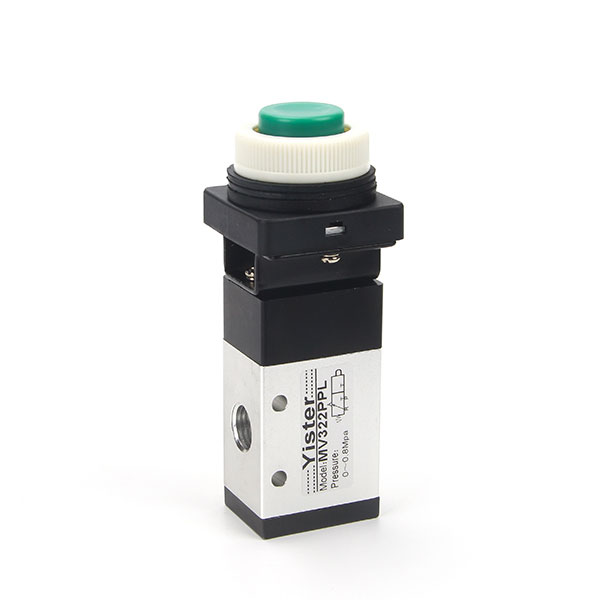

MV322PPL

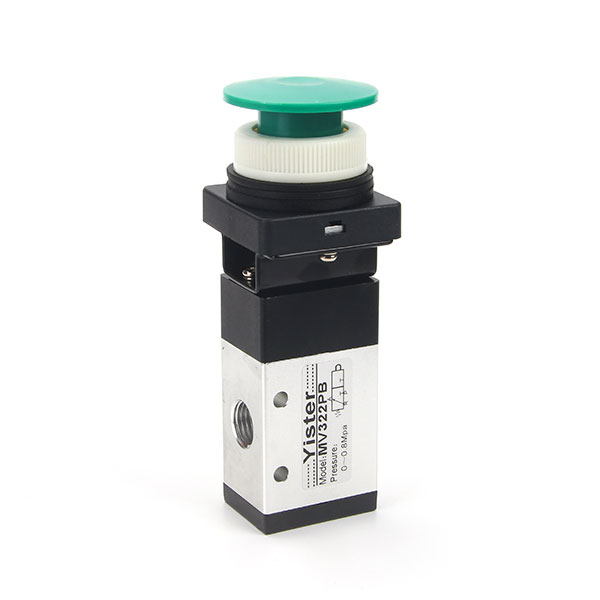

MV322PB

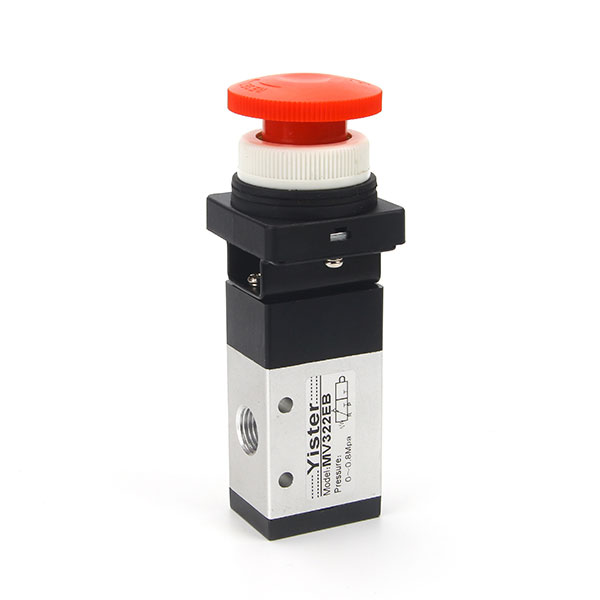

MV322EB
MV322TB

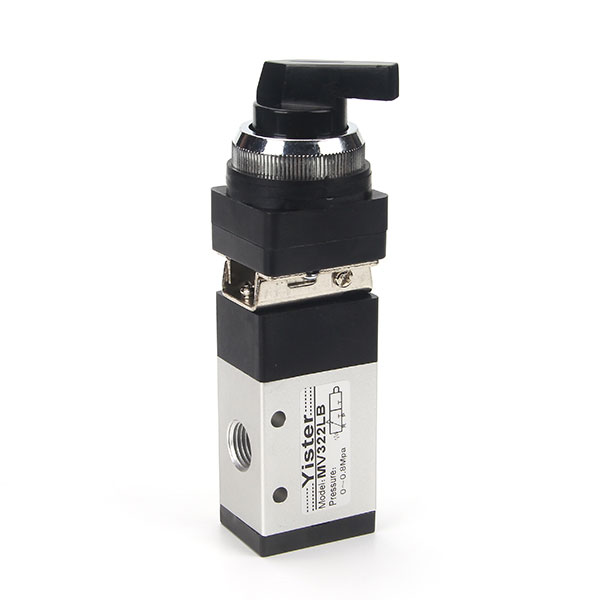

MV322LB
Fluid
Air
Operating press range
0-0.8 Mpa
Ambient and fluid temperature
-5 to 60℃
Port size
1/4”
Operation type
Direct acting
Lubrication
Not required

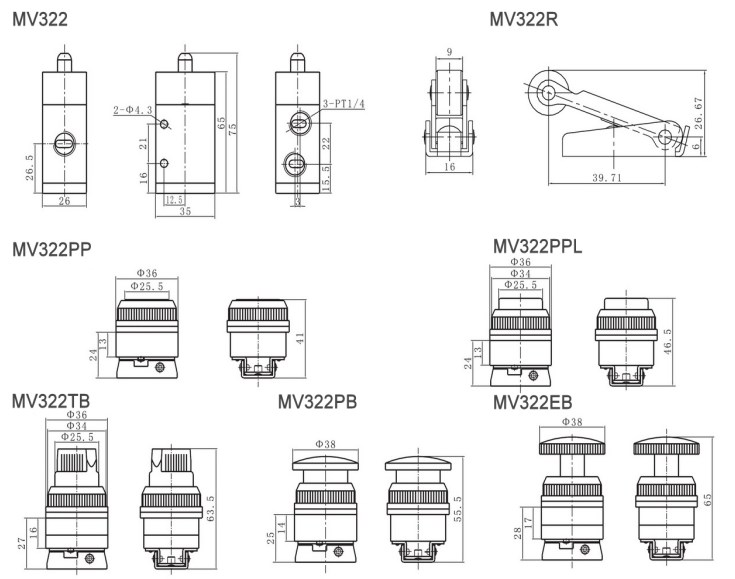

Dimension
Feature
Mushroom head color:Red Green Yellow Black
Working medium for MV322 mechanical valve: 40 Micron Filtered Air
Position & Way no: Two-position and Three-Way
Port Size: G1/4"
Working Pressure Range: 0~0.8MPa
