PCF series pneumatic fittings

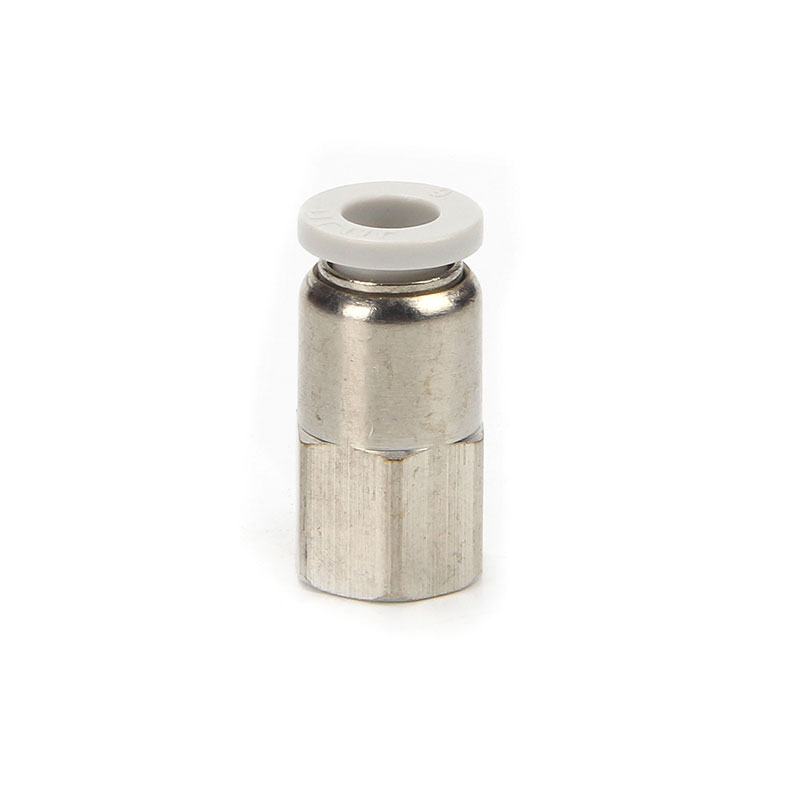

PCF series straight female thread brass material pneumatic Quick Connecting Tube Fittings

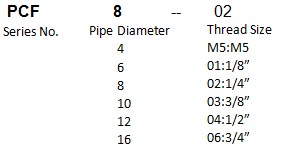

Order code
Technical parameter
Model
PCF4-M5
PCF4-01
PCF4-02
PCF4-03
PCF6-M5
PCF6-01
PCF6-02
PCF6-03
PCF6-04
PCF8-M5
PCF8-01
PCF8-02
PCF8-03
PCF8-04
PCF10-01
PCF10-02
PCF10-03
PCF10-04
PCF12-01
PCF12-02
PCF12-03
PCF12-04
PCF14-03
PCF14-04
PCF16-03
PCF16-04
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Thread size
M5,1/8”,1/4”,3/8”,1/2”
Material of body
Brass

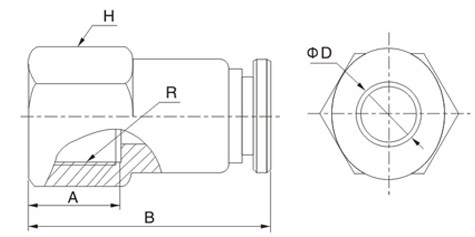

Dimension
Inch Type
Metric Type
φD
R
A
B
H
PCF5/32-M5
PB4-M5
4
M5
6
24
10
PCF5/32-01
PCF4-01
4
G1/8
9
27
12
PCF5/32-02
PCF4-02
4
G1/4
11
29
15
PCF1/4-M5
PCF6-M5
6
M5
6
24
12
PCF1/4-01
PCF6-01
6
G1/8
9
28.5
12
PCF1/4-02
PCF6-02
6
G1/4
11
31
15
PCF1/4-03
PCF6-03
6
G3/8
12.5
31
19
PCF1/4-04
PCF6-04
6
G1/2
12.5
32
24
PCF5/16-01
PCF8-01
8
G1/8
9
29
14
PCF5/16-02
PCF8-02
8
G1/4
11
31
15
PCF5/16-03
PCF8-03
8
G3/8
12.5
32
19
PCF5/16-04
PCF8-04
8
G1/2
12.5
33
24
PCF3/8-01
PCF10-01
10
G1/8
9
33.5
17
PCF3/8-02
PCF10-02
10
G1/4
11
35
17
PCF3/8-03
PCF10-03
10
G3/8
12.5
35.5
19
PCF3/8-04
PCF10-04
10
G1/2
12.5
36.5
24
PCF1/2-01
PCF12-01
12
G1/8
9
33.5
19
PCF1/2-02
PCF12-02
12
G1/4
11
35.5
19
PCF1/2-03
PCF12-03
12
G3/8
12.5
36
19
PCF1/2-04
PCF12-04
12
G1/2
12.5
37
24
PCF14-03
14
G3/8
12.5
37.5
24
PCF14-04
14
G1/2
12.5
37.5
24
PCF16-03
16
G3/8
14
45.5
24
PCF16-04
16
G1/2
16
47.5
24
Feature
. PCF female thread brass screw straight quick connect is high Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
.The Product is Sturdy and Durable and Has a Long Service Life.
.Easy Installation and Disassembly, Good Sealing Performance.
.It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
